DEA TRACER
DEA Tracer
DEA TRACER is highly unique because its horizontal arm can measure and scribe not just design models or mould and die cores but carpentry structures and sheetmetal parts as well
DEA TRACER - Measure and More

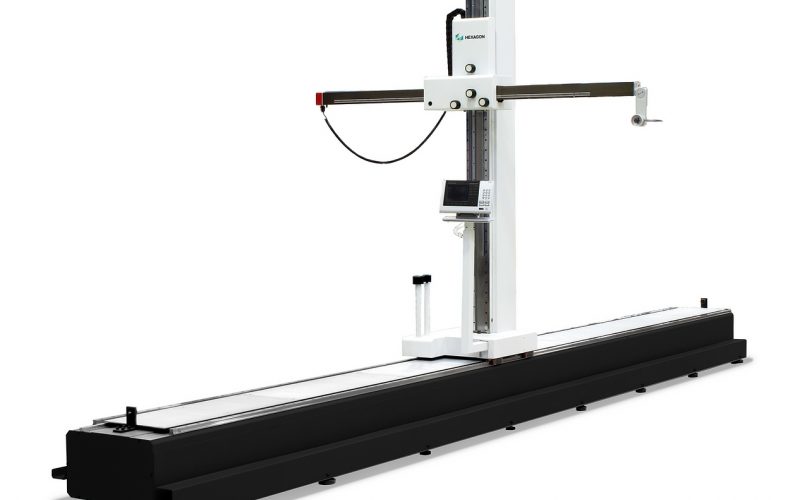

DEA TRACER is a manual coordinate measuring and scribing device. Its construction features a horizontal arm that is ideal for measuring and scribing medium- to large-sized parts such as design models, mould and die cores, carpentry structures or sheetmetal parts.
The mechanical structure of DEA TRACER has been optimized for easy manual motion. The horizontal arm is always balanced out, thus, users can position the arm precisely without fatigue, even after extensive use. Axis motion and locking are handled via control knobs and independent brakes for all axes. The axes slide on linear guideways and recirculating bearings that do not require air supply.
The basic model of DEA TRACER consists of a simple single-arm configuration. Also a digital readout and the HH-T probe head are part of the standard package. As an option dual arm versions, special work tables, a tracing kit and the PC-DMIS measurement software are available.
