Digital Bore Gauges

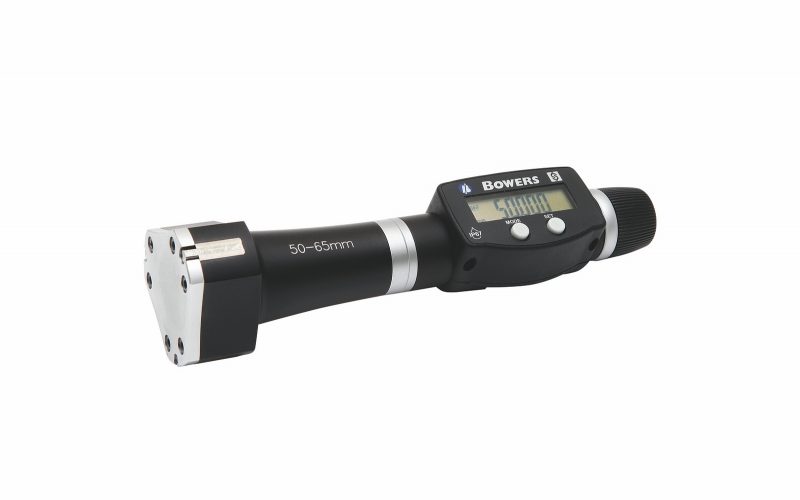

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage.

The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

Features

New ergonomic design with larger and clearer LCD display

IP67 electronics

Simple 2-button operation

4 preset memories

Proximity RS232/USB output with optional built-in Bluetooth Low Energy (BLE)

Bi-directional communication

Range 2-300mm (0.080"-12")

2-6mm 2 point / 6-300mm 3 point measurement

Resolution 0.001mm/0.00005"

Tungsten carbide measuring faces on all 3-point heads from 12.5mm

Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500")

Extensions available above 6mm for deep hole measurement

Ratchet stop to ensure consistent measurement

Setting rings included with individual instruments and sets

UKAS certificates supplied as standard with all setting rings

UKAS certificates supplied as standard with all gauges

Serial number on all digital readouts and measuring heads

Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)

Bore gauges manufactured according to DIN 863, part 4

Supplied in fitted wooden case
