HF5

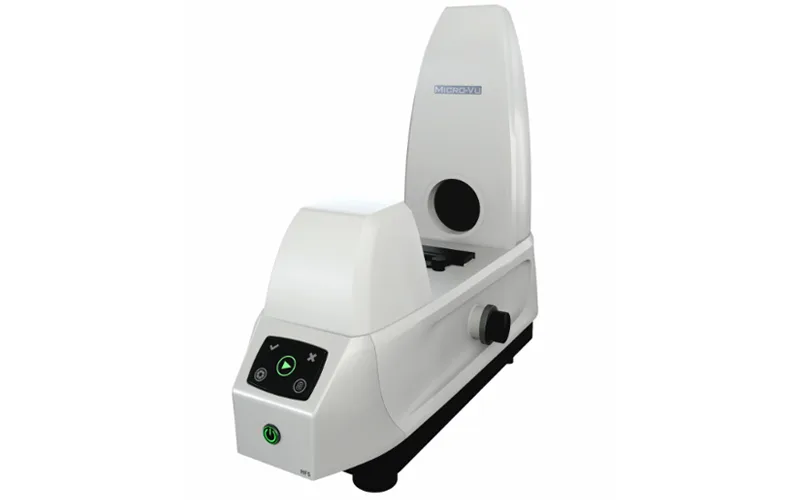

HF5 Field Of View Measuring System
HF5 is a fast, two dimensional, high precision measurement machine featuring a horizontal layout, optimal for measuring cylindrical parts.
The HF5 machine model is ideal for measuring cylindrical parts and has a 30 mm depth of focus, axial and profile light, horizontal layout, a stage with a rotation range of 90 degrees, one magnification lens, and is compatible with InSpec Software.
Depth of Focus:
The 30 mm depth of focus indicates the range over which the system can maintain accurate focus, which is crucial for measuring objects with varying heights.
Lighting Features:
Axial Light: designed for illuminating the surface of cylindrical parts during measurement.
Profile Light: positioned to illuminate the profile or contour of parts.
Layout Distinction:
The machine is unique in its class for featuring a horizontal layout, it is comparable to an optical comparator.
Stage Rotation Range:
The stage has a rotation range of 90 degrees. This allows the measured object to be rotated, providing flexibility in capturing different angles and surfaces. For example, it allows for helical screws to be positioned at an angle.
Single Magnification Lens:
The system is equipped with one magnification lens.
Compact Desktop Design:
The HF5 is suitable for placement on a standard desktop. Its space-efficient design makes this machine portable and easy to integrate into various environments.
