HP-S-X3 Scanning Probe
HP-S-X3
Compact, cost-effective but extremely accurate 3D scanning probes which can carry up to 360 mm long probing extensions and styli clusters. Available in both fixed and articulating models.
The HP-S-X3 offers fast single-point probing for all standard measuring tasks as well as High-Speed-Scanning for form and profile inspection and is ideally suited for dimensional control of small to medium high-accuracy prismatic parts and complex geometries.
An automatic tool changing capability allows styli change within a measuring program without the need for probe requalification. Magnetic clamping of styli on the sensor permits fast and reliable changes.
Two models are available:
- HP-S-X3C - Fixed probe for high performance

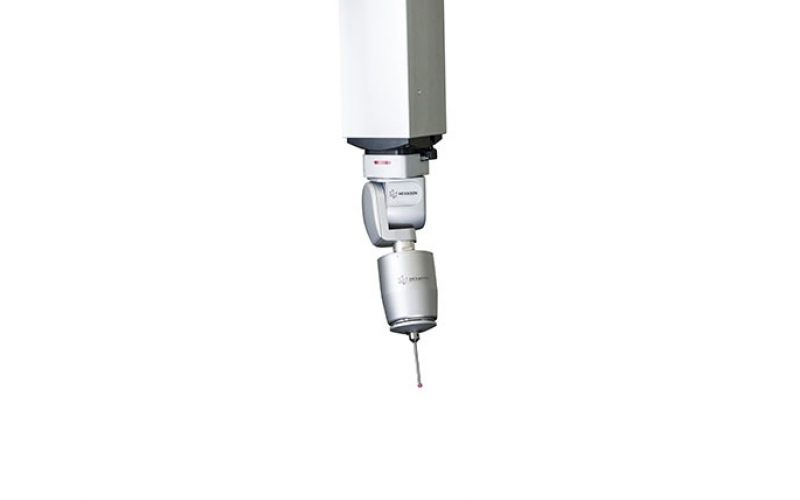

- HP-S-X3T - Fitted to a HH-A or HH-AS probe head, the probe can be rotated to differnent angles for greater flexibility
