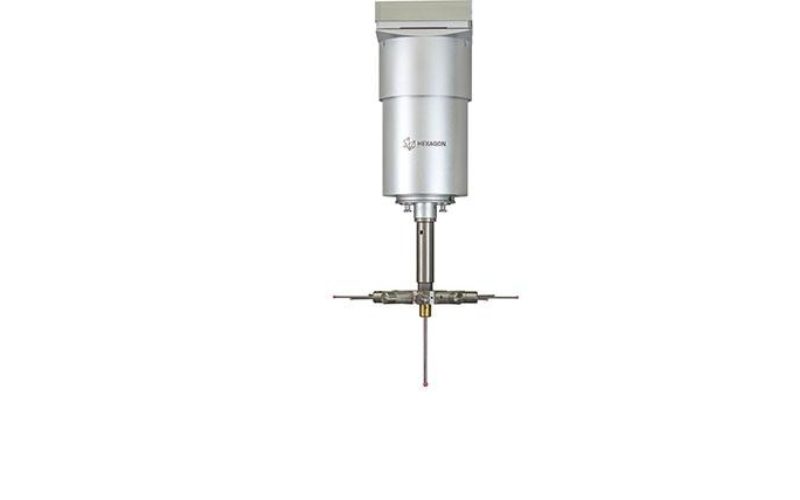

HP-S-X5 Scanning Probe
HP-S-X5
Designed for excellent precision, HP-S-X5 scanning probes are full 3D fixed scanning heads capable of simultaneously measuring in the X, Y and Z directions to precisely define the orientation of workpiece surfaces.
Available in two versions to accommodate the best styli options for every application, the HP-S-X5 and HP-S-X5 HD sensors are ideally suited to measuring the tight tolerances and complex geometries of mechanical parts.
The HP-S-X5 and HP-S-X5 HD are heavy-duty analogue scanning probes that offer very high and repeatable accuracy even with extra-long probe extensions and heavy styli clusters.
HP-S-X5 range scanning probes offer true 3D probing, making them ideal for inspecting parts like gears, rotors and blades. On contact with the part, the probe automatically measures normal to the surface. Deflections are measured by high-resolution Linear Variable Differential Transducers (LVDT), allowing accurate compensation of the probe bend whatever length of stylus is used.
Both versions feature an anti-collision system to protect the head, while styli can be changed automatically without requalifying the sensor, reducing measurement time for higher productivity. Pneumatic stylus clamping ensures fast and reliable changes, reducing operator workload. The rugged sensor construction also makes them virtually maintenance free for long-term accuracy.
The HP-S-X5 HD version offers better part accessibility, improving styli acceptance to lengths of 800 mm and weights of 650 g and enabling customers to apply high-accuracy scanning across a greater range of measurement applications, including the inspection of small workpieces and features deep within parts.
