Inspection

Inspection is an intuitive and powerful 3D inspection software designed for manufacturing companies conducting first article inspection (FAI) and production control. Inspection features all the essential functionalities required to build a measurement sequence, resulting in high efficiency when controlling multiple parts. A built-in centralized panel displays all the information you can choose to export in the final report. Like other Creaform software modules, Inspection is directly integrated into Creaform.OS, the Creaform 3D software platform and application suite. It provides the simplest integration of probing, 3D scanning and photogrammetry measurements to meet industry requirements for all quality control applications.

The combination of Creaform technologies with Inspection offers the metrology software for shop‑floor environments. With its intuitive interface, it is the best solution for all inspection workflow, with no compromises made on measurement quality and GD&T requirements.

Available through the Inspection software module, the new Sheet Metal Add-on generates the most repeatable and accurate 3D measurements for sheet metal, giving QC and QA professionals a high confidence level in their 3D scan data.

Inspection has been entirely rethought in order to make it suitable for users of every type, with a wide range of expertise levels and workflow types. The following enhancements were made:

• Integrate photogrammetry, by supporting both the Creaform MaxSHOT 3D and the C‑Track as measuring devices. Inspections cans be performed directly from positioning targets and can additionally use a combination of targets and scan or probe data.

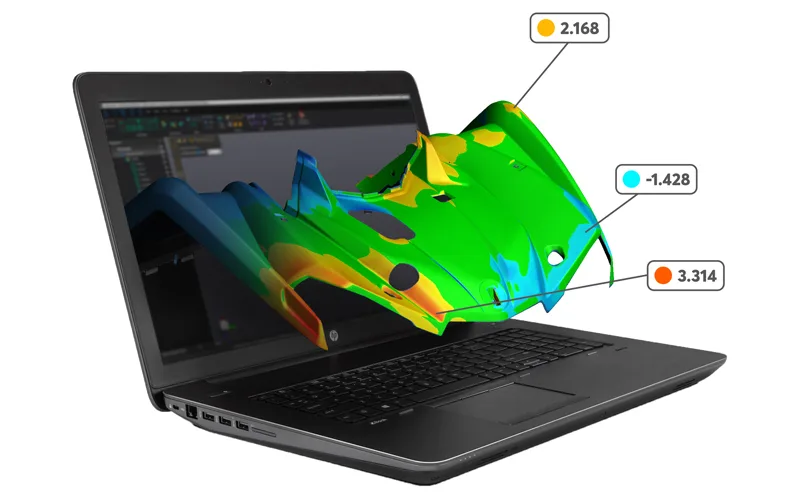

• Introduce a Quick Colormap feature, with a best fit photogrammetric‑model sent to the CAD file in order to deliver the colormap.
• Displaying a real-time visualization (with CAD model) during the target acquisition phase.
• Supporting inspections from scan data, by integrating a new Creaform.OS workflow as well as introducing interactivity in the 3D Viewer.

STEP 1: Measure

STEP 2: Import

STEP 3: Align

STEP 4: Analyse

STEP 5: Report

STEP 6: Repeat

Inspection is a versatile assistant that supports you throughout the inspection process. With its simplicity and efficiency, it helps you validate the conformity of manufactured parts and deliver higher-quality products to your customers, faster.
