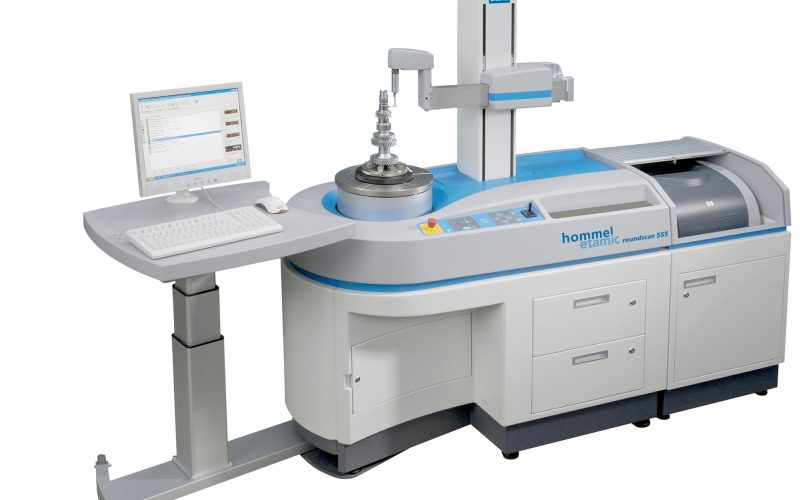

Roundscan

To safeguard the consistently high quality of your workpieces, you require accurate and reliable measuring systems. The Hommel-Etamic roundscan combines the form and roughness measurement in a single measurement run. You are able to measure the form, roughness and twist of the component with a single probing system.

The systems centers and levels your workpieces automatically. When compared with conventional measuring instruments, the time required for leveling is reduced by 60 percent. The CNC axes operate with great speed and utmost precision. This allows you to perform detailed inspections of large workpieces such as gearshifts, pistons and bearing rings. The ergonomic measuring station ensures that your employees can operate the device both easily and comfortably. The measuring process is largely automated, thus saving both time and resources.

In its basic configuration, you can use the Jenoptik HOMMEL-ETAMIC roundscan for pure form measurements with 1 μm resolution in the R/Z axis and 20,000 points in the C axis. The high-resolution model is suitable for combined form and roughness measurements with 0.1 μm resolution in the R/Z axis and 360,000 points in the C axis. This model is also equipped with an integrated linear scale and active level control.
