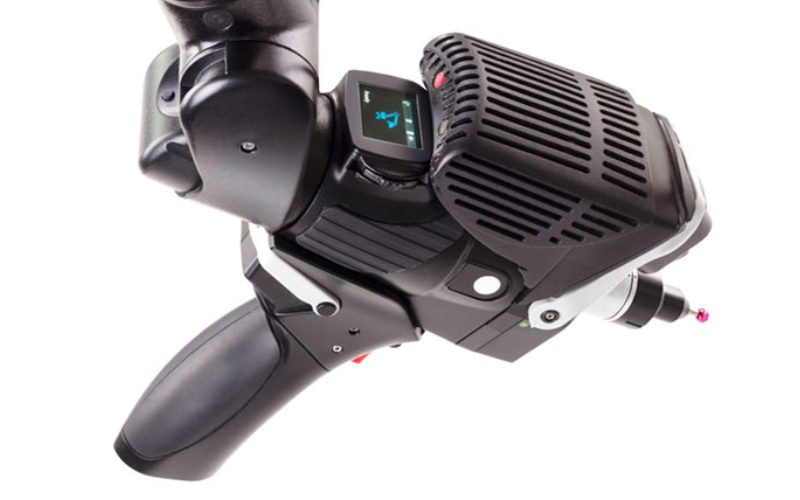

RS5 Laser Scanner

With its wide and horizontally-oriented laser scan line and fully-automatic exposure settings, the RS5 Laser Scanner makes non-contact 3D digitisation faster, easier and more accurate than ever.


The scanner can be easily removed from the Absolute Arm, to allow easier and safer access to touch probing functionality in hard-to-reach areas. It can be remounted with no need for recalibration – thanks to its completely repeatable mounting, you just clip it back in place and continue 3D scanning immediately. And with no trick settings that limit speed and scan-line width in order to deliver peak accuracy, the RS5 Laser Scanner delivers all the performance all of the time – maximum frame rate at maximum laser width.

The RS5 Laser Scanner is the pinnacle of 3D scanner technology, and in combination with the Absolute Arm 7-Axis delivers the ultimate all-round portable measurement solution for small-to-medium components.

Scan Line
With mid-range width at 115 millimetres, the laser scan line of the RS5 Laser Scanner makes digitising large surfaces fast and simple.

Light Movement
Designed for lightness and usability, the 400-gram RS5 is a low-weight addition to the Absolute Arm that makes 3D digitisation simple and easy to perform without additional user fatigue.

Configurable Wrist
A key component of the configurable modular wrist of the Absolute Arm 7-Axis, the RS5 Laser Scanner works in harmony with a variety of grip options and touch measurement accessories to deliver unbeatable measurement flexibility.

User Feedback
Through the on-wrist display screen of the Absolute Arm 7-Axis, the RS5 allows for measurement feedback and setting adjustment at the point of measurement for a clear improvement to workflow productivity – scanner profiles can now be selected without having to touch the computer.

ISO Certification
The full scanning system accuracy of the RS5 and Absolute Arm 7-Axis system is supplied certified to ISO 10360-8 Annex D.

Technological Foundation
Built upon years of portable measuring arm 3D scanner technology, the RS5 Laser Scanner is the latest in a long line of market-leading scanners for articulated measuring arms, going back to the ROMER Scanners that were paired with the ROMER Arm and ROMER Absolute Arm and now beyond.
