Most of all bent tubes and wires are less than 1,000 mm long from end to end and have a maximum diameter of 100 mm. The first model of the new TubeInspect generation, the TubeInspect P8.2, was especially developed for the efficient quality control of this kind of component.

View Product Brochure

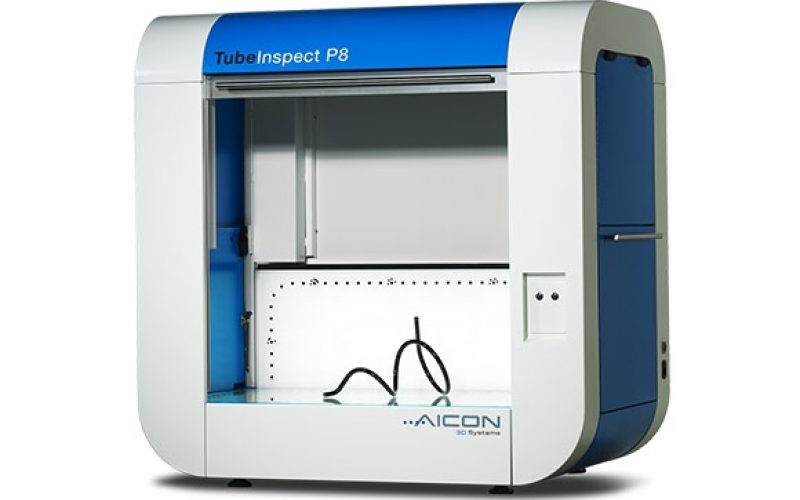

TubeInspect is an all-in-one turnkey measurement cell specially developed for the efficient quality control of bent tubes and wires.

Powered by an array of high-quality camera that deliver unmatched optical scanning functionality, TubeInspect is all about making tube measurement as fast as possible without compromising on data quality and accuracy. The leading BendingStudio XT software platform is central to the system, allowing it to become the central hub for controlling and analysing the entire tube production process.

Integrated long-life, low-maintenance LED illumination technology smoothly illuminates the TubeInspect measurement field, with the interior sidelight controlled automatically through BendingStudio XT. Imaging is fast and detailed with GigE camera technology the ensures synchronic capture of the measuring object within milliseconds. And all this is built on an innovative three-dimensional glass reference surface that is highly precise and offers the reliable stability demanded for shop floor use.

CAD-Adaptors
Asymmetric fittings and holders can be measured without mechanical adaptors, using a digital CAD-Adapter created from a CAD model (IGES, STEP).

High-speed
Measurement within as little as 3 seconds after placing tube into the measurement system.

High-resolution cameras
Special HRC models boast an array of 12 megapixel cameras which deliver more detailed inspection functionality as well as powering TubeInspect’s automation capabilities.

Direct control
Hotkey button on TubeInspect front panel allows for quickly beginning and confirming measurements, minimising back-and-forth between cell and desktop.

Turnkey resilience
TubeInspect comes in the form of an enclosed concept suitable for rough production environments.

Measurement variety
Measure flexible, malleable or freeform bent tubes, either in serial inspection of high-volume batches or for reverse engineering and prototyping applications.

Automation ready
Full integration within a larger robot production cell, with external control possible from within a dedicated BendingStudio XT interface.

BendingStudio XT software
The well-established BendingStudio XT platform delivers direct bender interfaces for all major brands, measurement plans for rapid batch measurement, automatic and customisable reporting and easy CAD data import and export.

Each TubeInspect size comes in a standard model featuring 3-megapixel camera arrays, or an upgraded HRC version outfitted with 12-megapixel cameras.
