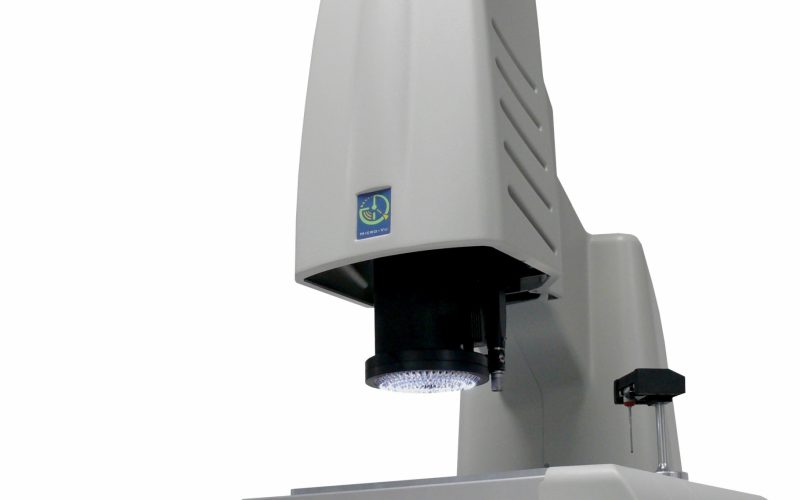

The Micro-Vu Vertex is a multi-sensing, CNC measuring system in 3 available sizes. It incorporates optical vision with touch probe laser and rotary options. Both contact and non-contact measuring utilities are operated by the InSpec software
The Vertex Multisensor Measurement Systems implement new technologies to provide speed and accuracy on reliable and affordable measuring machines.
Micro-Vu's InSpec Metrology Software provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.
The systems include InSpec Metrology Software, a programmable optical zoom, 3x digital zoom, non-linear stage compensation, non-linear optics compensation, advanced LED lighting, machine resident calibrations, and boasts a single USB connection to your workstation computer.
| Model | Measurement Capacity | XY Accuracy | Z Accuracy | Scale Resolution | Stage Capacity |
|---|---|---|---|---|---|
| Vertex 261 | 250 x 160 x 160 mm | 2.0+L/250 | 2.0+L/200 | 0.1 µm | 10 kg |
| Vertex 341 | 315 x 315 x 160 mm | 2.6+L/175 | 3.0+L/150 | 0.1 µm | 20 kg |
| Vertex 342 | 315 x 315 x 250 mm | 2.6+L/175 | 3.0+L/100 | 0.1 µm | 20 kg |
