Waveline Portable
Waveline Portable
Whether on the shop floor, on the production line or in the metrology lab, our mobile surface measuring devices are the ideal partner for reliable and precise measurements. With their functional design, the devices fit securely in the hand and are positioned precisely on the workpiece.
With various probes and a large range of accessories, the portable range of Waveline products master the most diverse measuring tasks with ease. In terms of accuracy, they are in no way inferior to stationary measuring systems.
Waveline W5 | Lightweight, small and with long-life battery
The mobile roughness measuring device Waveline W5 convinces with safe and highly precise roughness measurement. The system is positioned precisely on the workpiece and does not slip. It weighs little and is compactly built so that you can guide it perfectly in mobile use. What's more, the rechargeable battery won't let you down even with frequent use: One charge is enough for more than 800 measurements.
The roughness probes can be changed easily and quickly, meaning the W5 can be used for countless different measuring tasks as required. The intuitive click wheel and color display ensure that you can operate the mobile roughness measuring device particularly easily.
As an option, you can expand the measuring system with the Waveline P5 printer. The two components are easily connected via Bluetooth® technology. This allows you to print out your measurement results directly on site without the need for any additional connection cables.
Waveline W10 | Mobile roughness tester with integrated printer
The Waveline W10 measuring device is ideally suited for mobile roughness measurement. It allows you to monitor the surface quality of your workpieces directly in production. The handy measuring system has extensive functions. It offers reliable and precise measurement both during traverse probing and in overhead and vertical positions. The integrated roughness standard is used to quickly check the device and thus ensures consistently high measuring accuracies.
A thermal printer is integrated in the W10. This makes it possible to document the measurement results immediately. Tolerance evaluations, profiles, Abbott curves and statistics can be printed out straight away. The measuring device offers you seven different programs as well as the option to test the instrument. All functions can be operated in a user-friendly manner via the modern color touchscreen. No time-intensive training is required, which saves you time and money.
Optionally, you can extend the measuring system with the Evovis Mobile evaluation software. This was specifically developed for mobile measuring devices, is PC-based and considerably expands the roughness measurement functions. It works in online and offline mode and supports you in selecting the measurement conditions. It also automatically saves your print forms.
Waveline W15 | Mobile roughness measurement with professional evaluation
With the compact Waveline W15 set, you can measure surface roughness flexibly at the desired location. The handy traverse unit lies securely on the workpiece thanks to the integrated support prism and ensures precise measurements.
The extendable tripod legs and a 3-point support on the traverse unit make it easy to adjust to the desired measuring position, both horizontally and vertically. For measurements on low-lying surfaces, in grooves, in incisions or between collars, the probe can also be swiveled by 90° without any retooling. With a wide range of skid probes, the Waveline W15 set is ready for all common roughness measurement tasks. As an option, the system can easily be extended to create a compact measuring station for production or the measuring room.
Measurement and evaluation are carried out using the PC-controlled Evovis Mobile Standard software. The clear presentation of the measurement results, the export of parameters and profiles, optional statistical interfaces and various printout and storage options ensure user-friendly evaluation.

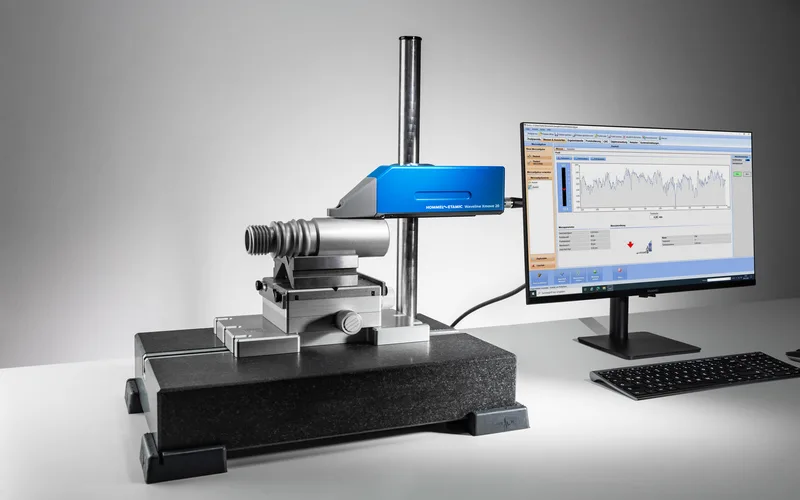

Waveline W40 | Flexible surface measurement with free probe system
With its handy Waveline Xmove 20 traverse unit, the Waveline W40 set offers flexible options for measuring all common roughness, waviness and profile parameters. Operation is simple and intuitive thanks to the integrated start button and motorized probe lowering for automatic positioning of the probe.
The traverse unit masters measurements in all positions and orientations with ease - even overhead with the probes provided for this purpose. It can be optionally used in a compact measuring station or placed directly on a large workpiece for measurement.
Measurement and evaluation are carried out using the PC-controlled Evovis Mobile Standard software. The clear presentation of the measurement results, the export of parameters and profiles, optional statistical interfaces and various printout and storage options ensure user-friendly evaluation.
